Pattern Set-Out
// Parametric tile, masonry, and paving layout engine with contractor set-out markers and quantity takeoffs
- Generates parametric tile, herringbone, chevron, and stone patterns on floors, walls, and ceilings.
- Places 2D contractor set-out crosshair markers directly over starting origin points on drawings.
- Calculates net tile counts with grout joint gaps, applies wastage margins, and compiles Revit schedules.
PLAN // COLUMN CORNER SET-OUT
SCALE 1:20SET-OUT ORIGIN (0,0) // COLUMN CORNEROFFSET BOND 1/3 STAGGER
// Core Capabilities
Key Features & Workflow
01 //
Parametric Pattern Library
Configures stacked, running bond, herringbone, hexagon, and French patterns with true dimensions.
02 //
Contractor Set-Out Markers
Places styled crosshairs over starting origin points to guide on-site tile installation.
03 //
Wastage & Schedule Generator
Factors in grout widths and wastage allowances to generate native Revit BOQ schedules.
// Workflow
Workflow & Operation
01 // STEP
Pattern selection and sizing.
Select from built-in standard and decorative patterns, specifying exact tile measurements and grout joint thicknesses.

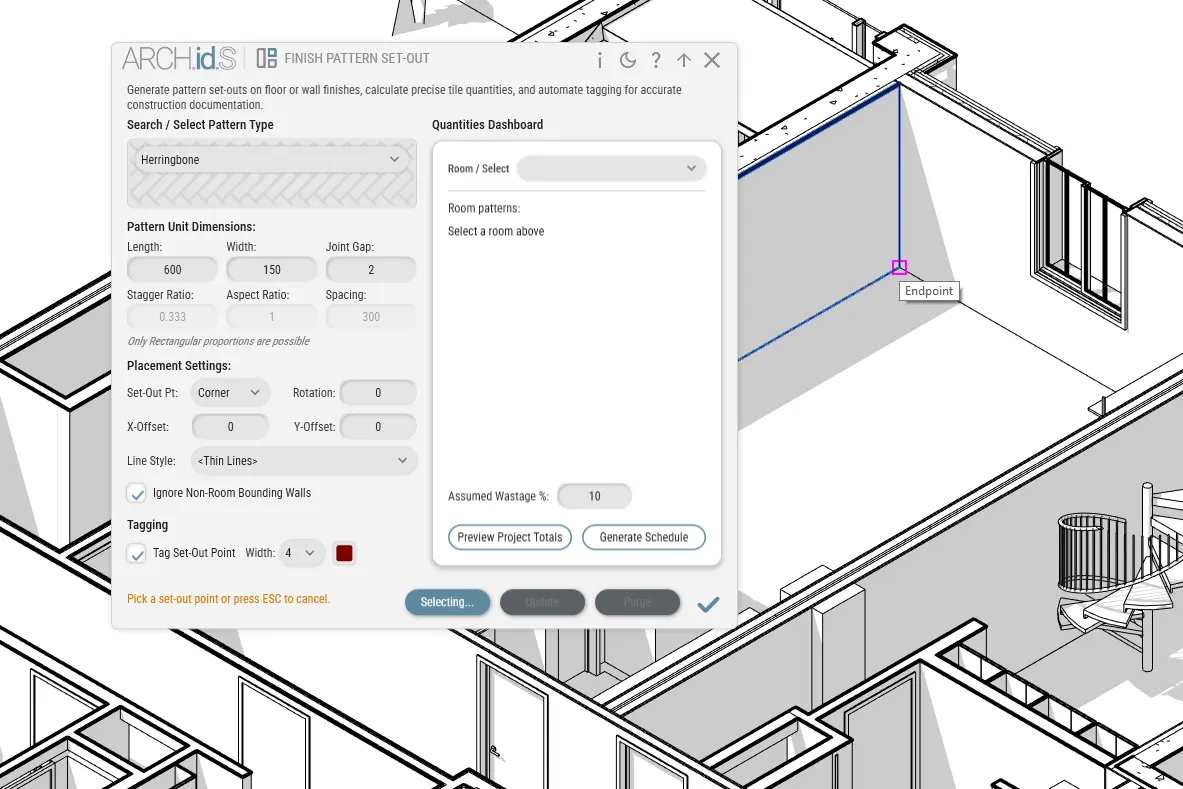

Selecting pattern type and dimensions in Revit
EXPAND
02 // STEP
Origin anchor and rotation.
Click to set the starting origin (Corner or Center), orient pattern angles, and nudge X/Y offsets to balance cut border tiles.

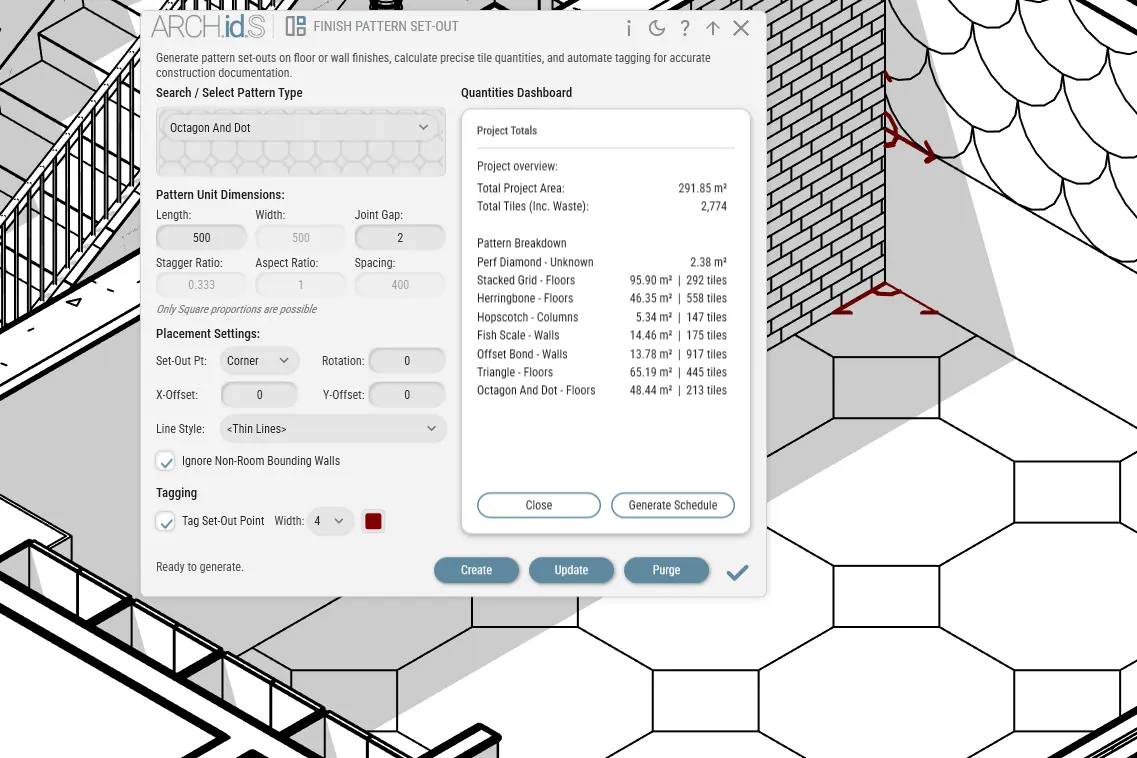

Aligned surface pattern with origin set-out marker
EXPAND
03 // STEP
Site tagging and BOQ schedules.
Deploy 2D contractor set-out crosshairs over starting points and compile schedules with wastage margins.

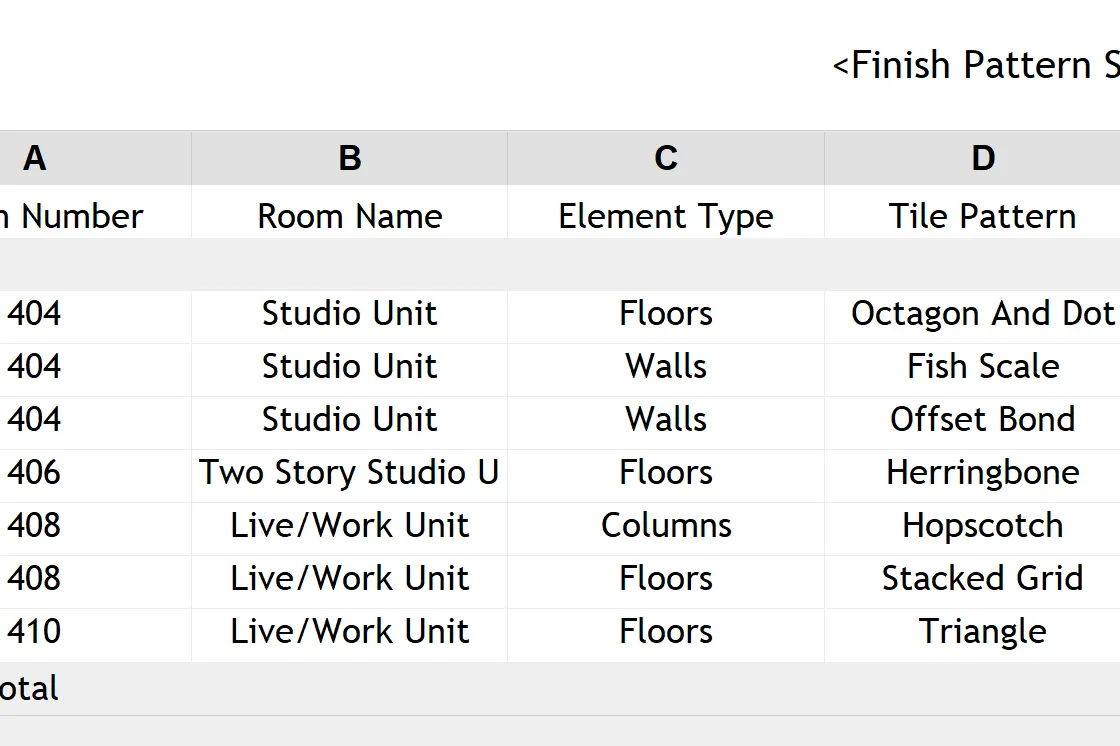

Revit schedule reporting tile quantities with wastage allowance
EXPAND
