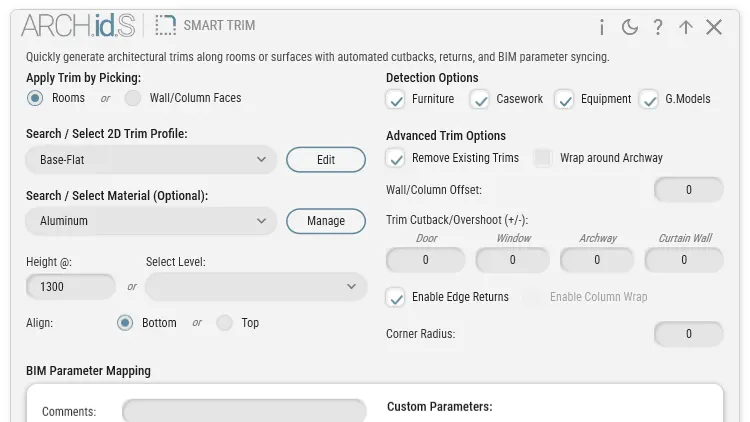

Smart Trim
// Automated wall base, chair rail, and cornice generation with unified Create and Edit modes
- Generates skirtings, chair rails, and ceiling cornices around room perimeters or targeted wall faces.
- 3D Boolean engine automatically cuts trims around doors, windows, and casework cabinetry.
- Unified Edit Mode allows global project-wide profile updates or targeted local adjustments.
Key Features & Workflow
Global vs Targeted Edits
Update profile families project-wide in one click, or lock custom cutbacks and returns to single instances.
3D Boolean Cuts & Detours
Cuts cleanly around door frames, curtain mullions, and fixed casework cabinets without geometry clipping.
Align Top & Wall Returns
Locks ceiling cornices directly to finished ceiling datums and models 90° returned end-caps at wall terminations.
Workflow & Operation

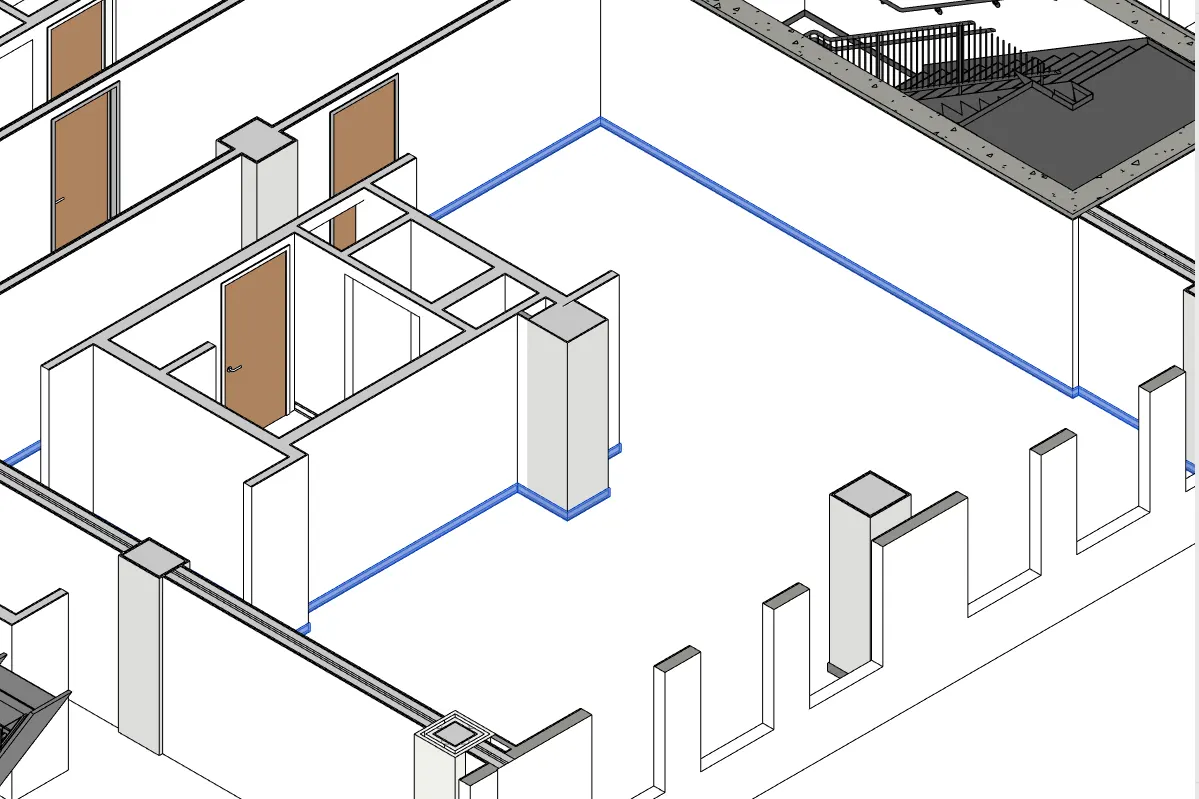

Continuous perimeter runs.
Generate continuous wall bases and cornices around enclosed rooms or targeted surfaces in one action.

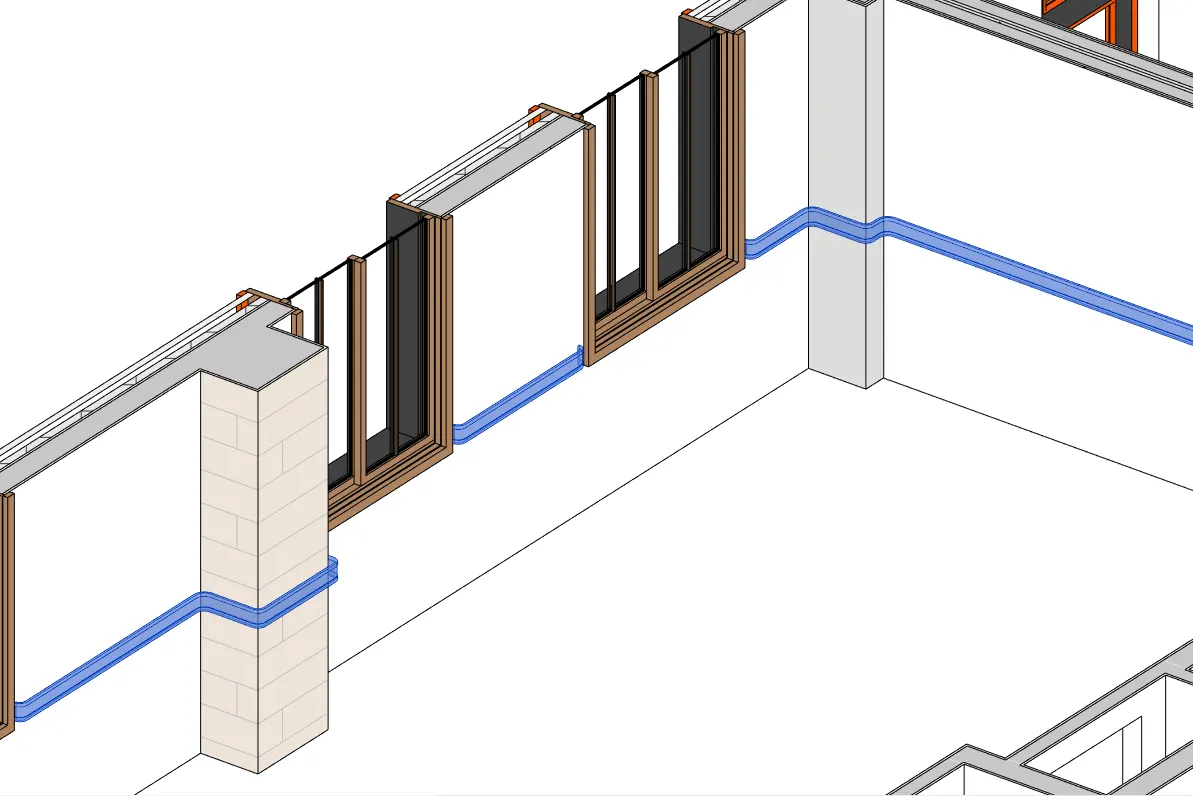

Corner miters and wall returns.
Resolves inside and outside corners with clean miter joints, with options for smooth fillets and returned end-caps.

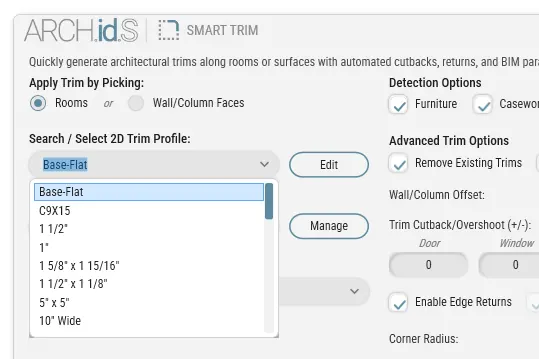

Custom profile family selection.
Select any standard 2D profile family loaded in your project, with a direct shortcut to fine-tune geometry in Revit's Family Editor.
