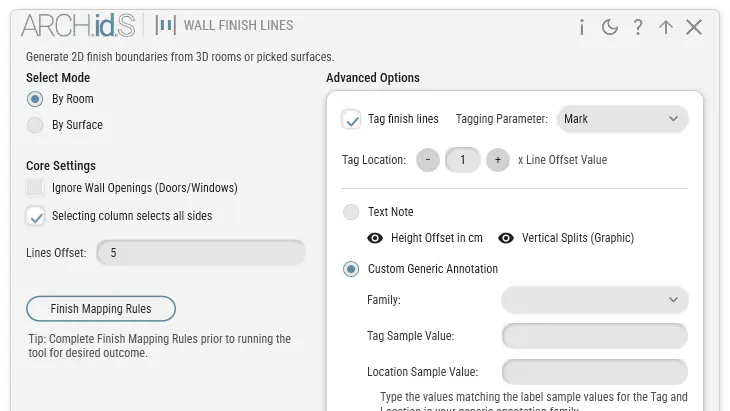

Wall Finish Lines
// Automated 2D finish plans mapped from 3D wall materials with intelligent tag placement

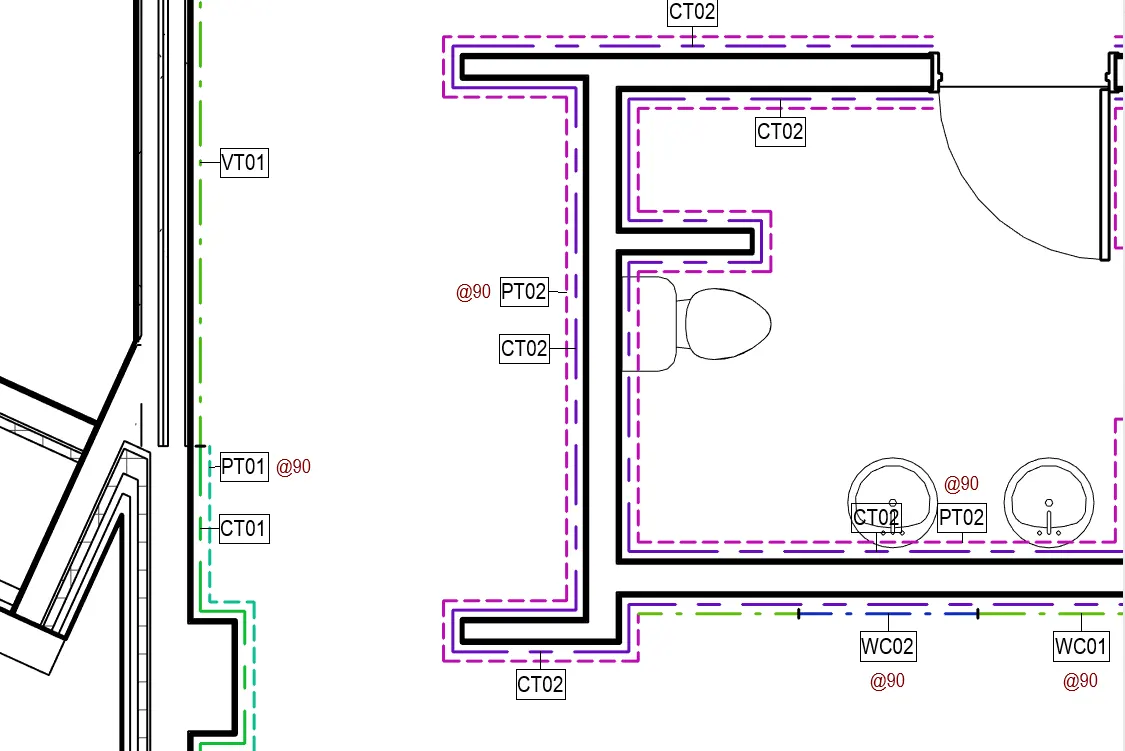

- Evaluates 3D wall materials to generate clean 2D presentation finish lines for 1:50 and 1:100 plans.
- Offsets vertically stacked finishes side-by-side on floor plans so every layer reads clearly.
- Anchors tags with orthogonal leaders, automatically sliding overlapping text boxes to clear collisions.
Key Features & Workflow
Stacked Finish Offsets
Identifies multiple materials sharing the same wall footprint and offsets secondary layers side-by-side into the room.
Orthogonal Tag Clearance
Anchors tags at segment midpoints with straight leaders, sliding overlapping annotations along the line to prevent clashes.
Collinear Segment Merging
Stitches split faces and joined wall fragments into continuous finish lines before placing annotations.
Workflow & Operation

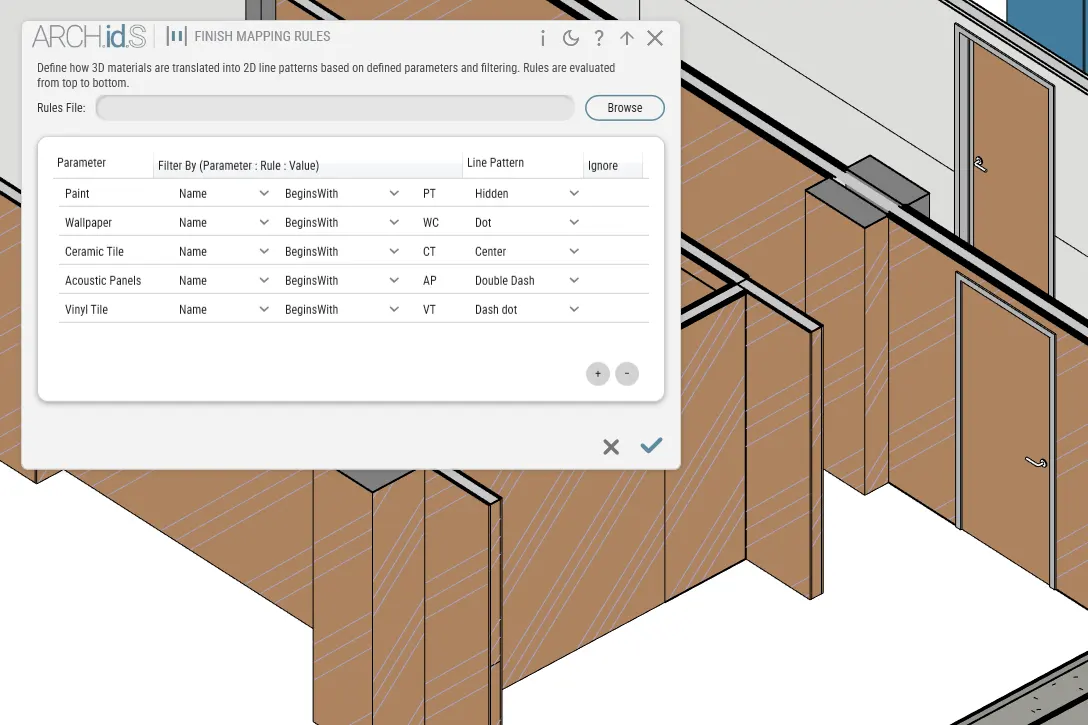

Material mapping rules.
Map 3D Revit finish materials to 2D line patterns and high-contrast presentation colors based on material names and classes.

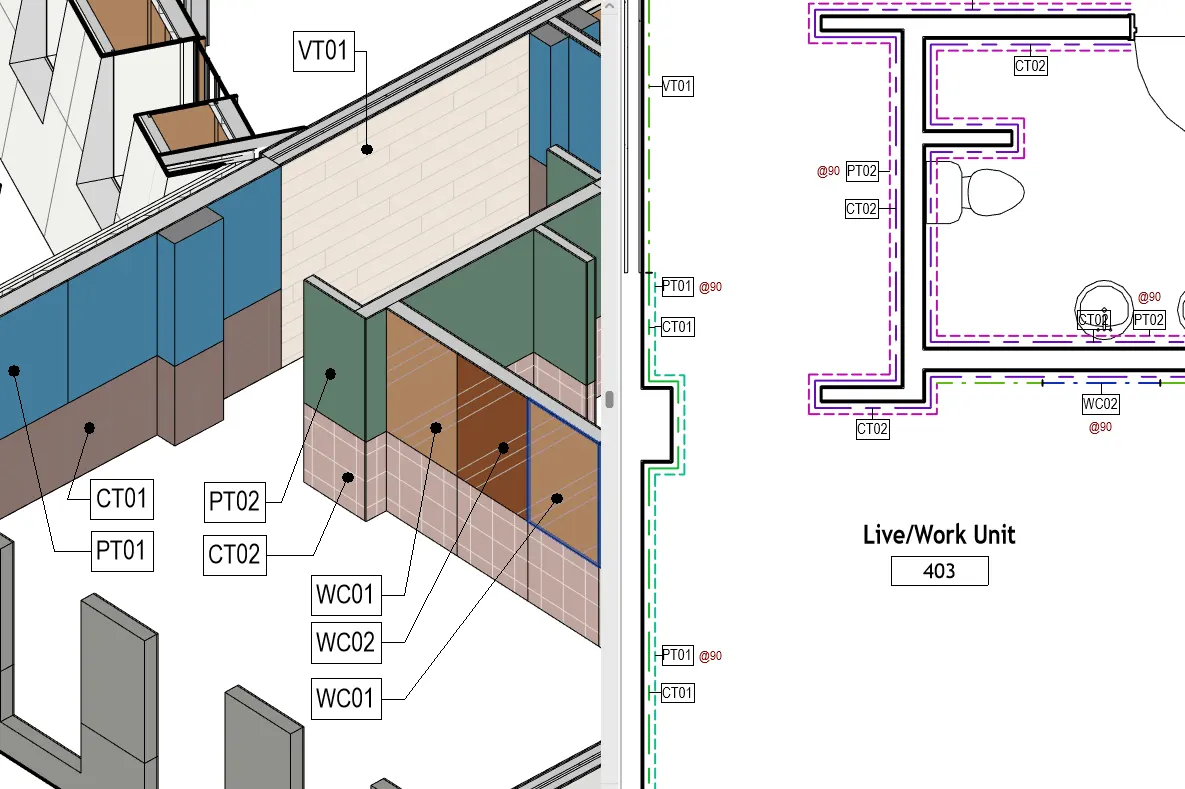

Side-by-side stacked offsets.
When walls have multiple vertical finishes (such as tile base and upper paint), secondary layers offset further into the room so every finish reads side-by-side on plan.
Smart tagging and collision sliding.
Places finish tags with orthogonal leaders at line midpoints, automatically sliding overlapping text boxes along the line to prevent graphic clashes.
