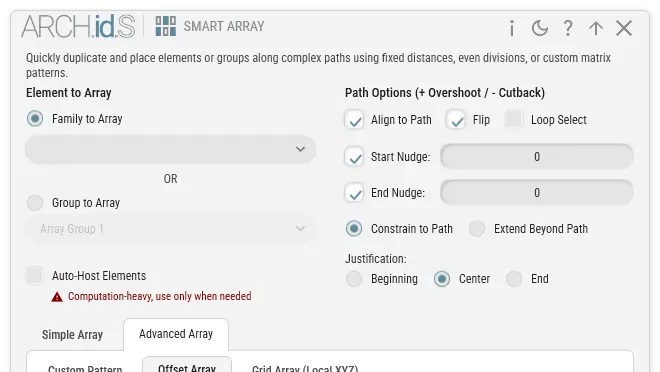

Smart Array
// Parametric element and group distribution along paths, multi-row offset aisles, and 3D matrices
- Arrays standalone families or Revit Groups along straight lines, wall faces, and compound curves.
- Generates multi-row layouts with automated walking aisles, fire breaks, and stretched symmetrical spacing.
- 3D Grid Matrix generator with vertical stepping and downward ray-casting to auto-host to sloping topography.
PLAN // CURVED THEATER ARRAY & AISLE
SCALE 1:50CONSTANT AISLE: 1200mm EGRESS CORRIDORPER-ROW CURVATURE OPTIMIZATION
// Core Capabilities
Key Features & Workflow
01 //
Path Alignment & Groups
Distributes families or complex groups, rotating elements tangentially along curved baselines.
02 //
Aisle Gaps & Concentric Rows
Injects fire-break corridors and expands concentric radial rows for amphitheaters or auditoriums.
03 //
3D Matrix & Topo Auto-Host
Multi-axis spatial grid arrays with ray-casting to host elements securely to sloped topography.
// Workflow
Workflow & Operation
01 // STEP
Custom pattern sequences.
Build repeating multi-step rhythms with unique distances, offsets, and rotations, saved globally for office reuse.

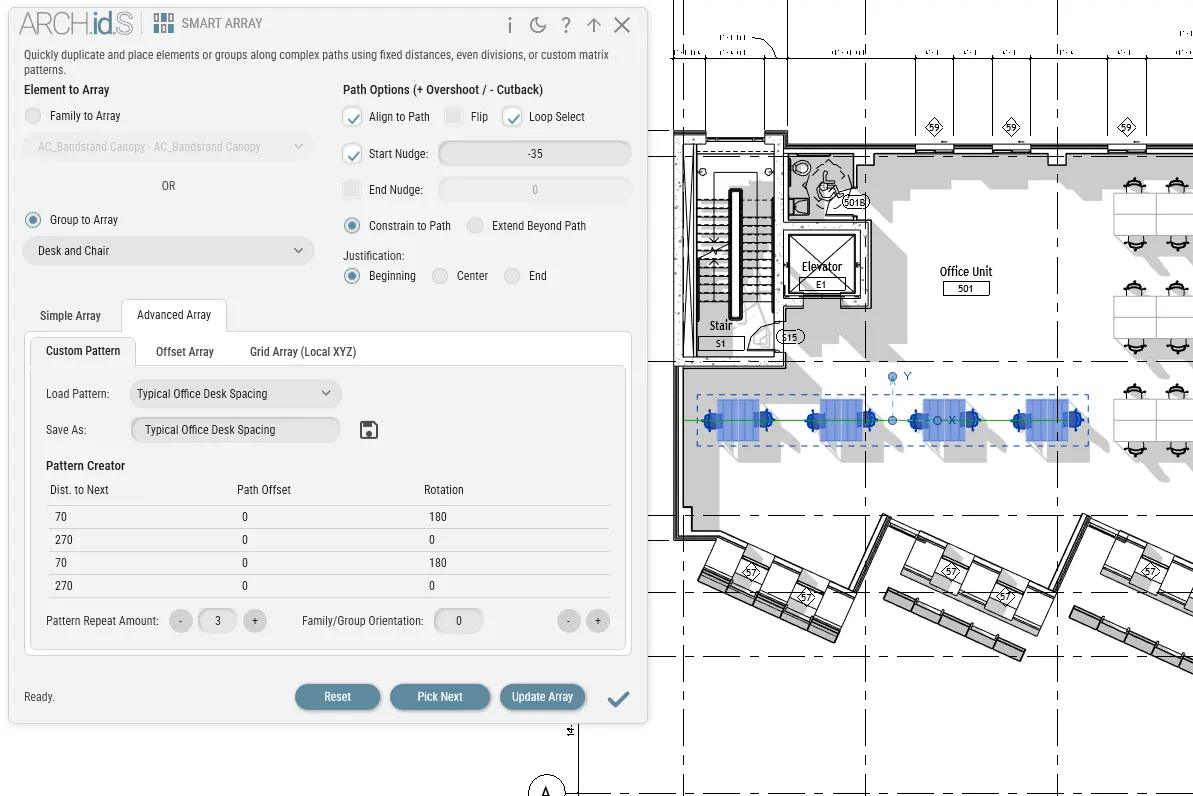

Custom pattern-based array sequences in Revit
EXPAND
02 // STEP
Path-based curve arrays.
Select continuous curves or wall edges to distribute elements tangentially along paths with end-clearance nudging.

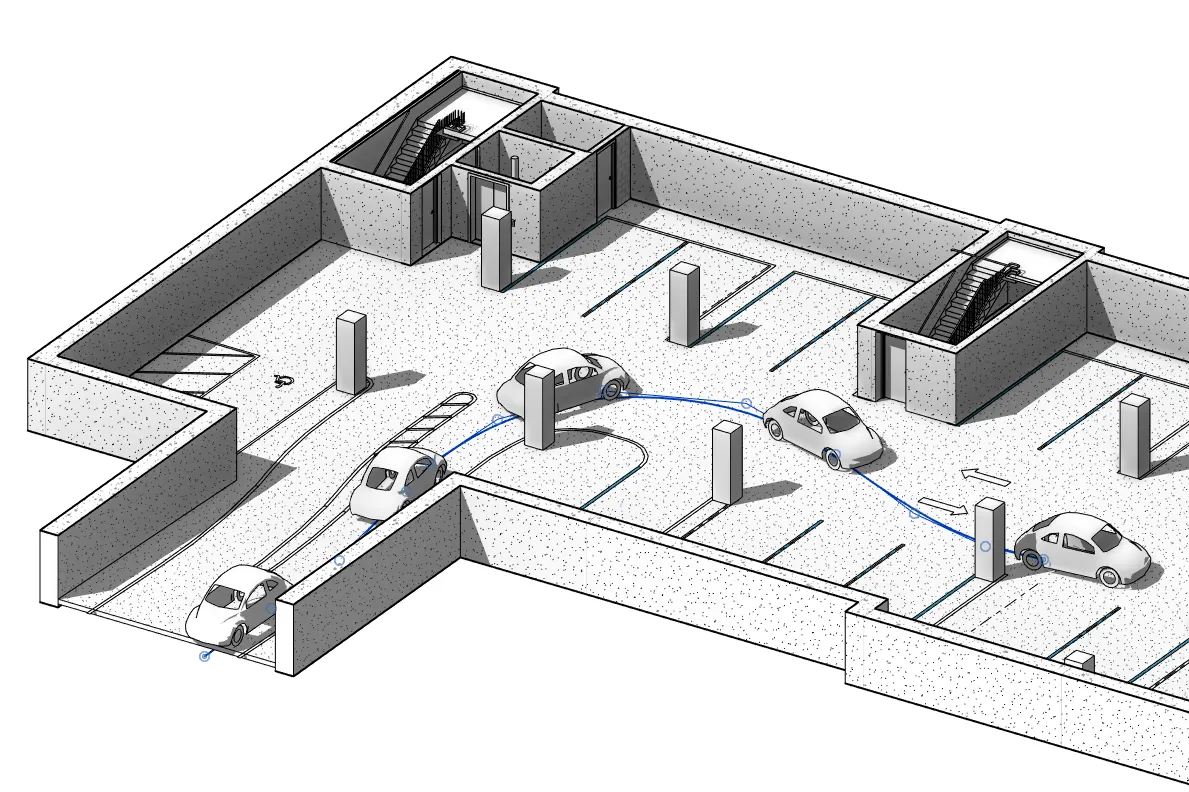

Elements arrayed along a curved path
EXPAND
03 // STEP
Multi-row offsets and aisles.
Generate parallel or concentric radial rows with automated walking aisles and fire-break gaps for seating and parking.

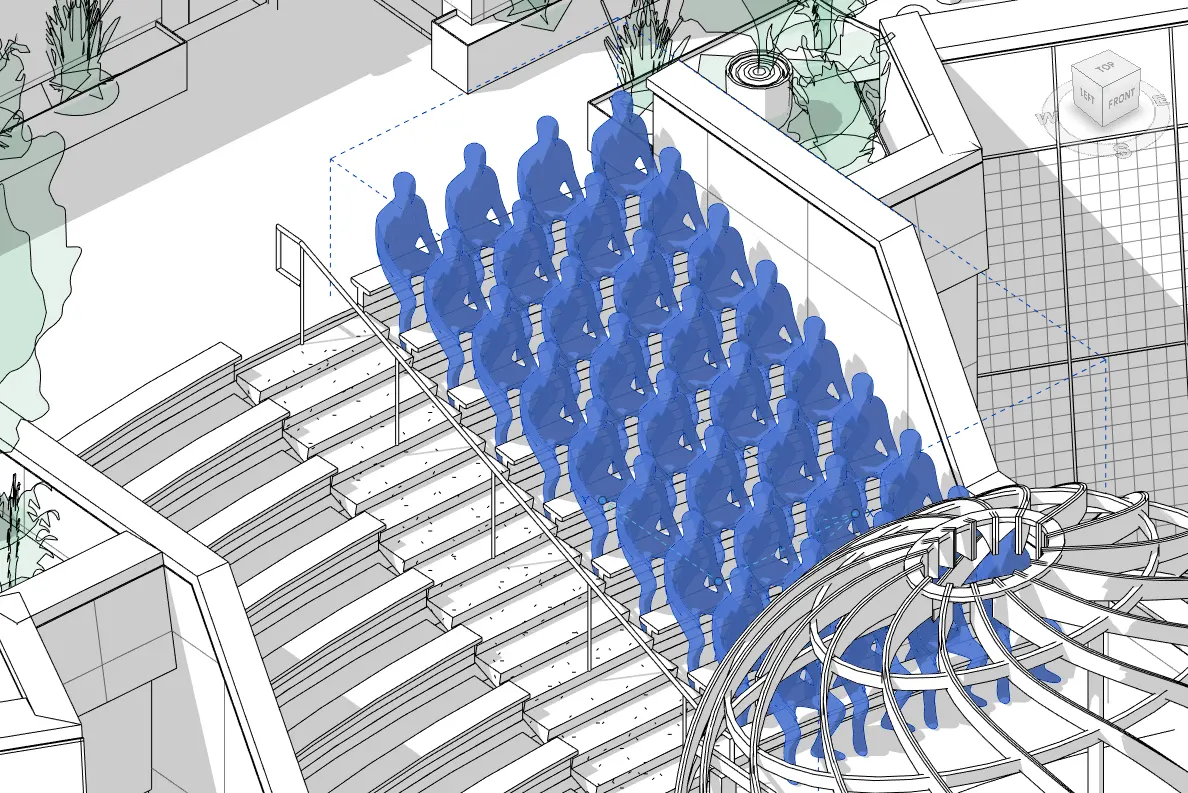

Offset array with automated aisle gaps for auditorium or parking layouts
EXPAND
